    Please click here to purchase this product through our parent company, ADI Global.

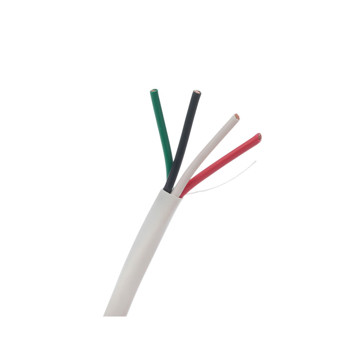

    Picture of SCP 4 CONDCUTOR, 14 AWG, STRANDED, SPEAKER CABLE - (C)UL FT6 WHITE - 1000 FT SPOOL

    SCP 4 CONDCUTOR, 14 AWG, STRANDED, SPEAKER CABLE - (C)UL FT6 WHITE - 1000 FT SPOOL

    Manufacturer:
    SCP 4 CONDCUTOR, 14 AWG, STRANDED, SPEAKER CABLE - (C)UL FT6 WHITE - 1000 FT SPOOL
    SKU: 14-4P
    Availability:
    Richmond : 0
    Mississauga : 0
    Call for pricing

    STRUCTURED CABLE PRODUCTS PLENUM SECURITY ALARM CABLE, (4) 14 AWG STRANDED BARE COPPER, 1000 FT, PVC, WHITE

    FEATURES

    Multi-conductor unshielded low-smoke PVC insulated stranded bare copper conductors, twisted with overall low-smoke PVC jacket. Ripcord and sequential foot markings printed on jacket.

    APPLICATIONS

    Security systems, intercom systems, sound/audio systems, power-limited controls. Cables are manufactured to meet current NEC guidelines and are verified by outside standards organizations including c(UL)us and c(ETL)us.

    CERTIFICATIONS

    • CMP/FT6 Rated, FPLP, CL2P, CL3P
    • FPLP, CL3P
    • ETL, c(ETL), RoHS, CE
    • Prop65 Warning: Cancer and Reproductive Harm www.P65Warnings.ca.gov
    14/4P
    TypePlenum
    Conductor Size14 AWG
    Number of Conductors4
    Number of Strands19
    Conductor MaterialStranded Bare Copper
    Jacket Diameter6.731 mm
    Jacket MaterialPVC
    Jacket ColorWhite
    Insulation MaterialPVC
    ShieldingUnshielded
    Length1000 ft
    Voltage Rating300 V
    Resistance2.7 Ohm
    Impedance70 Ohm
    Capacitance41.1 pF/ft
    Operating Temperature75 deg C
    Weight71.9 lb
    Packaging TypePlywood Spool
    File Download(s):Cut Sheet |
    *
    *
    *
    Products specifications
    Color White
    Conductor 4-Conductor
    Type Speaker Wire
    Gauge 14 AWG
    Insulation Type Unshielded
    Jacket Type General
