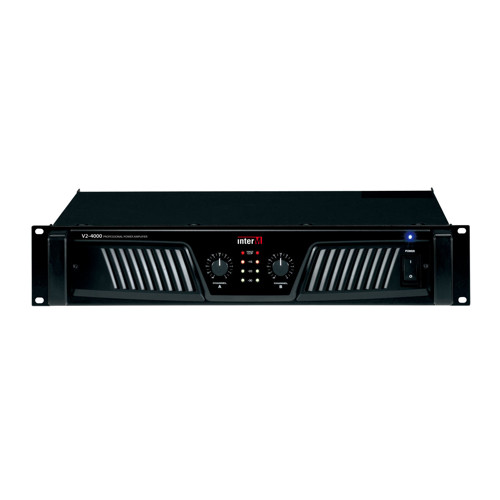

INTERM - PROFESSIONAL POWER AMPLIFIER, 2 CHANNEL 700W/1200W/1900W

FEATURES

• 2O-load stable per channel, 4O-load stable in bridged mono
.
• 2U rack space
.
• Switch mode power supply available for high efficiency and low weight
.
• Forced air cooled(front panel intake, rear panel exhaust)
.
• Front panel indicators for output signal, clip, protect and power
.
• Rack ears for permanent installation in a standard 19"(rack mount width) enclosure
.
• Selectable high pass filter on each channel-clip limiter circuitry
.
• Gain selectable switch for both channel
.
• Front removable dust filters

SPECIFICATIONS

		V2-4000
		120VAC	230VAC
Continuous Average Output Power Per Channel
Stereo Mode (1kHz, Both Channels Driven)	8? (T.H.D 0.1%)	750W	750W
	4? (T.H.D 0.1%)	1300W	1300W
	2? (T.H.D 0.5%)	2000W	2100W
Bridged Mono Mode	8? (T.H.D 0.1%)	2600W	2600W
	4? (T.H.D 0.5%)	4000W	4200W
Input Sensitivity (Rated Output Power @4?)		1V
Voltage Gain (Rated Output Power @4?)		37dB
Frequency Response (1W @8?)		20Hz~20kHz	±0.3dB
		±0.3dB	5Hz~70kHz
Damping Factor (100Hz, Rated Output Power @8?)		more than 380	more than 450
Voltage Gain (Rated Output Power @4?)		31dB	33dB
Frequency Response (1W @8?)		20Hz~20kHz	±0.3dB
		- 3dB point	5Hz~70kHz
Damping Factor (100Hz, Rated Output Power @8?)		more than 400
T.H.D (20Hz~20kHz, 10dB Below Rated Output Power @4?)		Less than 0.05%
Channel Separation (1kHz, 3dB Below Rated Output Power @8?)		less than 70dB
Residual Noise		less than 73dB
Signal to Noise Ratio (Rated Output Power @8?, 20Hz~20kHz)		106dB
Output Circuitry		2 Step Class H
Input Impedance		12 k? Balanced
HPF (30Hz/50Hz)		12dB/oct
Indicators		Prot/Clip, Signal, Power
Protection Circuitry		Full Short Circuit, Thermal ProtectionPower ON/OFF Muting, DC Output Protection
Cooling		Variable Speed Fans, Front to Rear Air Flow
Connectors		Input : XLR(Female), 1/4?TRS, Output : 4 Pole Speaker Socket
Operating Temperature/Humidity		Temperature : 10°C ~ +40°C / Humidity : 0% ~ 90%
Power Source		120VAC/60Hz	230VAC/50Hz
		60Hz	50Hz
Power Consumption (1/8 Rated output power @4?)		14A	7A
Weight (SET)		12.1kg / 26.7lb
