    Please click here to purchase this product through our parent company, ADI Global.

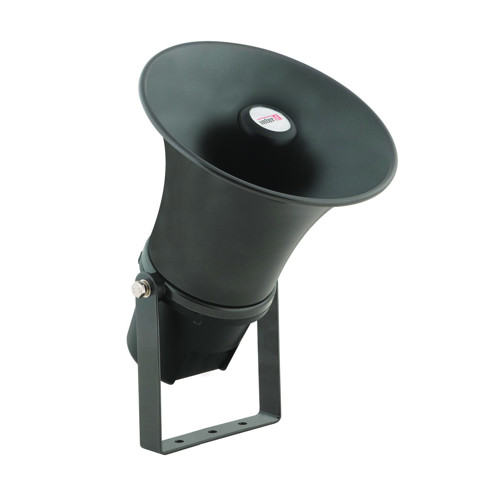

    INTERM - 50W PAGING HORN SPEAKER, 200/400OHM, VERTICAL 240DEG/HORIZONTAL160DEG ADJUSTMENT (2 PACK)

    Manufacturer: Picture for manufacturer Inter-M
    INTERM - 50W PAGING HORN SPEAKER, 200/400OHM, VERTICAL 240DEG/HORIZONTAL160DEG ADJUSTMENT (2 PACK)
    SKU: HS-50
    Availability:
    Richmond : 0
    Special Order
    Mississauga : 0
    Special Order
    Call for pricing

    50W PAGING HORN SPEAKER, 200/400OHM, VERTICAL 240DEG/HORIZONTAL160DEG ADJUSTMENT

    HS-50 delivers high sound pressure and precise control of the sound. It is not easily bent or broken as it is made up of very strong materials such as aluminum and by zinc die-casting. It is movable from 240° up-and-down and 160° left to right. It is designed to mount on the wall very easily. In addition, it perfectly operates under any climates as being accredited by EN-54-24(European Standard of audio announcements of loud speaker for fire alarm) with IP65 Class.



    FEATURES

    • Excellent intelligibility & loudness for voice and tone signaling
    • High directivity
    • Good reliability
    • Environment resistant for outdoor and indoor use
    • High-efficiency driver with proven performance
    • Transformer equipped for versatile high impedance line applications?



    SPECIFICATIONS

    Model HS-20 HS-30 HS-50
    Type Horn Speaker (Circle) Horn Speaker (Circle) Horn Speaker (Circle)
    Unit 82mm Diaphragm 82mm Diaphragm 82mm Diaphragm
    Power Handling (AES) 20W 30W 50W
    Input Power 100V 20/10W 30/15W 50/25W
    70V - - -
    Impedance 100V 500/1kO 333/666O 200/400O
    70V - - -
    LOW - - -
    Power Selection - - -
    Frequency Response (-10dB) 350Hz ~ 5.5kHz 250Hz ~ 5kHz 250Hz ~ 5kHz
    Sensitivity (1W/1m 300, 400, 500, 600Hz avg.) 106dB 106dB 106dB
    Maximum SPL 119dB 121dB 123dB
    Norminal Dispersion (HxV) 70° 70° 70°
    Input Connector INPUT Line Direct Connection INPUT Line Direct Connection INPUT Line Direct Connection
    Enclosure Material Aluminum Aluminum Aluminum
    Enclosure Color Dark Gray Dark Gray Dark Gray
    Grill Material - - -
    Grill Color - - -
    Weights (Net) 2.45kg 2.85kg 3.1kg
    Dimensions (Net, WxHxD, mm) 250(Ø) x 280(D) 280(Ø) x 350(D) 320(Ø) x 350(D)
    Weather Resistant IP65 IP65 IP65
    Flame Resistant ? ? ?
    Certification CE CE CE
    Included Accessories NUT M10 NI, WASHER PLATE, ASS.Y BOLT, 2EA Each + Bracket, Base NUT M10 NI, WASHER PLATE, ASS.Y BOLT, 2EA Each + Bracket, Base NUT M10 NI, WASHER PLATE, ASS.Y BOLT, 2EA Each + Bracket, Base
    File Download(s): Datasheet | Brochure
    *
    *
    *
    Products specifications
    Sold Per Pair
    Impedance 70V
    Speaker Type Paging Horn
    Color Gray
    Type Indoor/Outdoor
