    DOORBIRD - IP VIDEO DOOR STATION D101 POLYCARBONATE HOUSING WHITE EDITION

    Manufacturer: Picture for manufacturer Doorbird
    DOORBIRD - IP VIDEO DOOR STATION D101 POLYCARBONATE HOUSING WHITE EDITION
    SKU: D101
    Availability:
    Richmond : 0
    Discontinued

    Mississauga : 0
    Discontinued
    Call for pricing

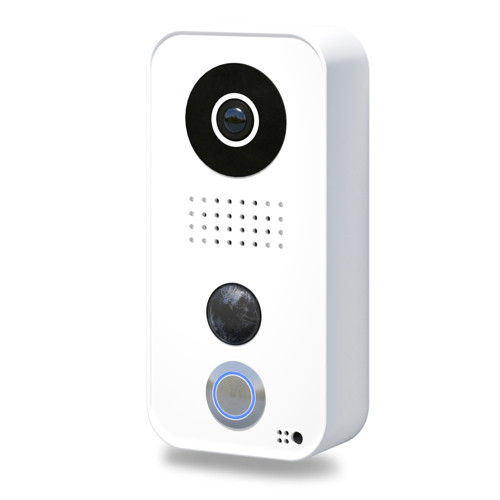

    DOORBIRD - D101 IP VIDEO DOOR STATION

    Important Note: Integrators, ensure you are running PoE 802.3af Mode-A or the DoorBird may not power on

    polycarbonate housing, White Edition. DoorBird combines innovative technology with exclusive design.

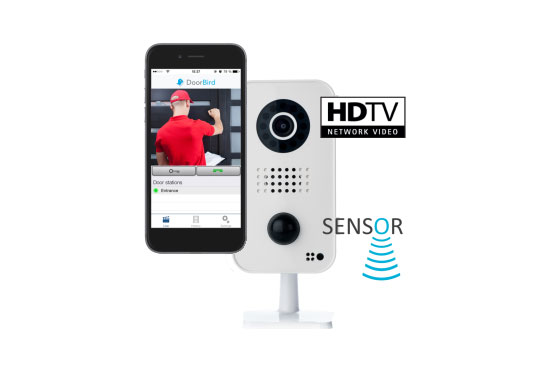

    DoorBird lets the homeowner answer the door from anywhere in the world with an Internet enabled smartphone. DoorBird will send a push notification to the registered phone(s) when the visitor presses the doorbell button or when motion is sensed so the homeowner can see the visitor and optionally have a conversation with them. Or check in any time you like proactively. The cloud service, DoorBird iOs and Android apps are all free.

    At no extra charge, Doorbird will also save high def 720p image snapshots of the most recent button press events and motion trigger events. These can be accessed any time from the app. Users have the option to purchase a cloud recording service directly from Doorbird after installation, which will provide 720p video clips stored for 7 days.

    Motion event triggers can be enabled, disabled, and the user may modify the motion sensor regions to reduce false triggers caused by street traffic or other passersby.

    DoorBird stands out from the crowd with many features not found on any other competing devices including multiple integration options including Control4, Savant, Kevo, August, Lockitron and Chamberlain MyQ. DoorBird can be used with most automation displays and has an exposed developer API. Doorbird now includes ONVIF support to allow integration with security camera systems and NVRs

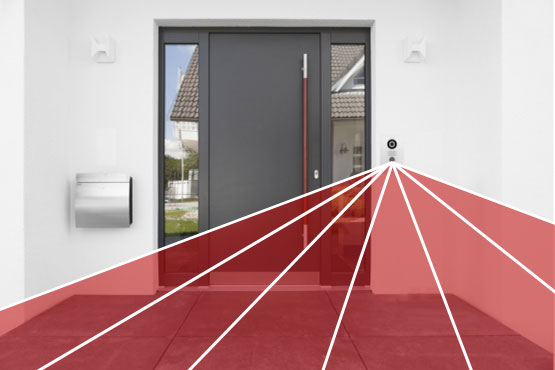

    Nothing escapes the motion sensor

    Perfect all-round visibility: Thanks to the integrated high-end motion sensor you always know what happens in front of your home. The 180° infrared motion sensor can, if desired, set off an alarm – without the visitor having rung the doorbell

    Convenience at any age

    Do you remember the time you learned how to answer the phone cautiously with your parents? It's even more important to know who is in front of your door. DoorBird combines convenience and security - at any age.

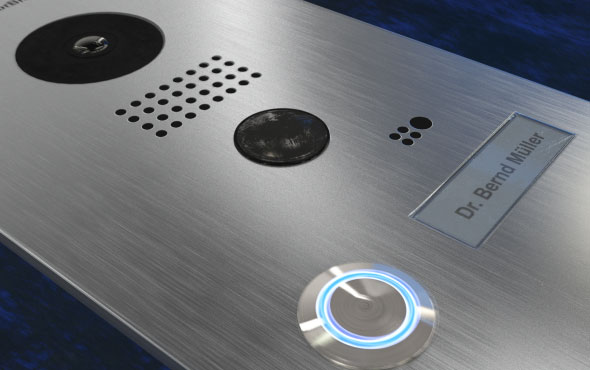

    Quality for a safer home.

    DoorBird is manufactured in Germany. A guarantee for the highest levels of quality and production standards. Temperature-resistant from -20° to +40° C, rain water protection in accordance with IP54 industry standard, a stylish product design with high quality stainless steel models.

    The BirdGuard doesn’t miss a trick

    Do you want greater security? With the indoor and outdoor add-on BirdGuard you can see what the visitor is doing after you have opened the door. You can send burglars packing with a siren of 100dB or a loud announcement.

    DoorBird is a high quality German designed and engineered product. Perfect for high end installations, professional integrators as well as tech savvy homeowners.

    FEATURES

    • High quality 180 degree hemispheric lens for wide view
    • Wired Ethernet and WIFI b/g/n connectivity
    • DC powered or PoE powered
    • High quality,  high definition images and HDTV image sensor
    • Great low light operation, 12 IR night vision LEDs with IR cut filter
    • Secure, encrypted VPN cloud connection does not open ports in the network
    • Bank grade secure datacenter
    • DoorBird designed STM compression requires much lower Internet upload speed than the competition
    • On demand live video any time
    • Connection to integrate with existing doorbell chime, door strike, gate or garage door release
    • MJPEG and H.264 RTSP integration support
    • ONVIF support allows DoorBird to integrate with security camera systems, NVRs, VMS
    • Developer API
    • HTML5 Widget for integration
    • Certified IP54 outdoor rated, rain/snow rated, and temp rated to -20C
    • Solid stainless steel button with illuminated LED ring
    • SIP support allows DoorBird to integrate with third party systems
    • Integrates with Control4, Savant, August Lock, Chamberlain MyQ, Lockitron, Kevo
    • Optional Cloud recording service

    SPECIFICATIONS

    Door Video Door Station D101
    General
    Housing Polycarbonate, UV-resistant
    Doorbell Button Stainless-steel button with illuminated LED Ring
    Name Plate Optional, can be engraved on the faceplate
    Mounting Type Surface-mounted
    Power Supply 15VDC (power 110-240VAC) or Power over Ethernet (PoE 802.3af Mode-A)
    Weight 290g
    Connectors Power, Electric door opener / strike, Door chime, Door opener button, Network
    Outdoor-Ready Yes, IP54
    Approvals CE, IC, FCC, IP54
    Dimmensions 157 x 75 x 35mm (H x W x D)
    Operating Conditions

    - 20 to +40°C

    Humidity 10 to 85% RH (non condensing)

    Included Accessories Video Door Station, Mounting plate, Power supply unit (world-wide, 110 - 240V), DIN-Rail power supply sold separately, Screw package, Quickstart Guide
    EAN 4260423860001
    Current system requirements
    Mobile device Latest iOS on iPhone /iPad, latest Android on Smartphone or Tablet
    Internet High-Speed landline broadband Internet connection, DSL, cabel or Fiber, min. 500kbs Uploadbandwidth, no Socks- or Proxyserver
    Network 802.11b/g/n 2.4GHz or Ethernet network, with DHCP
    Recommended installation height Camera lens should be at a min. height of 125cm
    Video
    Camera HDTV 720p, dynamic (VGA - HDTV)
    Lens High-end Ultra wide-angle Hemispheric Lens 180° horizontal, 90° vertical, straightened, IR-capable
    Night-Vision

    Yes, Light sensor,

    Automatic IR-Cut

    Filter

    Audio
    Audio Components Speaker and microphone, Echo and Noise Canceller
    Audio Streaming Two-way
    Network
    WiFi 802.11b/g/n 2.4GHz
    Ethernet Connector
    Motion sensor
    Type 12 intelligent Infrared LEDs
    Range 2-8m (dep. on environm.)
    Integrated wireless modules
    WiFi 2,4 GHz, internal antenna
    RFID 433 MHz, internal antenna
    Bluetooth Available separately
    Optional accessories
    Sold separately Faceplate F101, Faceplate F103, DIN-Rail Power supply, A002
    File Download(s): Datasheet | Manual
    *
    *
    *
    Products specifications
    Mount Type Surface
    Finish White
    Material Stainless Steel
    Type IP Video Door Station
